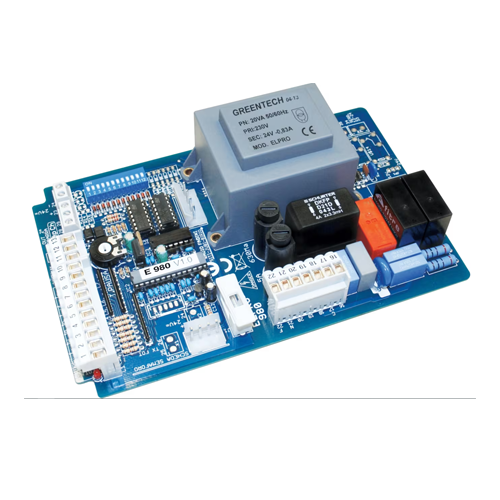

Fadini ELPRO 980 Control Board

ELPRO 980

FOR AUTOMATIC BARRIERS

COMPATIBILITY
Electronic control unit for BAYT 980.

OPERATING MODES
Automatic, semiautomatic, step by step automatic, deadman control and pre-flashing.

MAIN FUNCTIONS
Intuitive settings by trimmers and dip-switches: preset to operate two synchronized barriers at a time (master/slave), external clock, traffic lights up to 3 lights, operator status indication. Box size 235x314x139 mm. Grade of protection IP 53. Working temperature -20 °C +55 °C.

Data Sheet:-

• Board supply voltage 1PH (Vac – Hz)
  230 – 50
• Board supply voltage 3PH (Vac – Hz)
  –
• Motor max. power (W)
  1.200
• Courtesy light output (Vac)
  –
• Output for photocells/keyswitch/radio receiver (Vac – mA)
  24 – 500
• Pilot light output (Vac – W)
  24 – 3
• DSA control output (Vac – mA)
  –
• Flashing light output (Vac – W)
  230 – 25
• Motor run time (s)
  25 max
• Dwell time (s)
  0 – 180
• Gate delay time on closing (s)
  –
• Pedestrian opening time (s)
  –

Wiring Diagram:-
