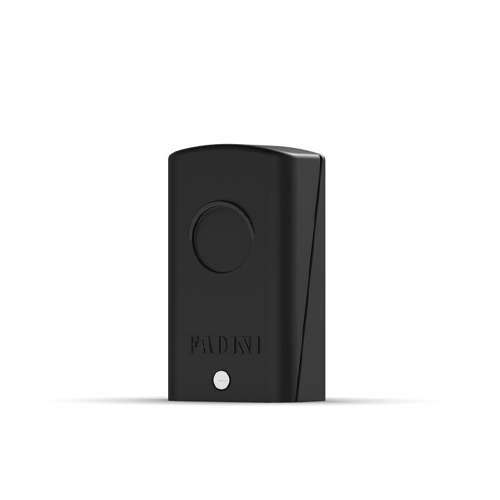

Fadini Trifo 11 Photocell

PHOTOCELL FOR SURFACE MOUNT
Safety device with infrared modulated light type D in compliance with EN 12453 norms, one receiver and one transmitter/projector

EASY TO INSTALL
Designed to be as compact as possible for limited space applications. ABS body with a high level of resistance to atmospheric agents..

RELIABLE
6 m distance range. Relay output to be connected to any electronic control unit in the ELPRO range or any other existing installation. 24 Vac/dc voltage supply

Data Sheet:-

• Power supply (Vac/dc)
  24
• Projector absorption (mA)
  55
• Receiver absorption (mA)
  35
• Working temperature (°C)
  -20 ÷ +70
• Relay contact rating (A/Vac – VA)
  1/125 – 60
• Infrared modulated light (Hz)
  1.500
• Two relays
  switching over
• Distance range (m) [N]
  6
• Time of obstacle detection (ms)
  6
• Grade of protection IP
  55
• Weight of one pair TRIFO 11 (g)
  85
• Weight per pack of one pair posts (kg)
  1,4
