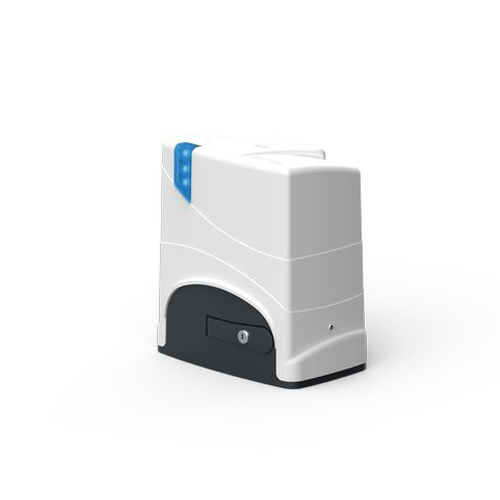

Fadini Junior 633

Junior 633
For sliding gates

Electromechanical geared motor operator

For residential and industrial applications
230 Vac

MAX 600 kg

DESIGN
Modern style, the cover is fitted with a blue led light indicating status of the automation.

QUIET
230 Vac geared motor operator, coupling of worm and plastic crown gear in oil bath, on ball bearings.

SMART AND SAFE
Gate travel is simple to program by a button, acceleration and deceleration on each cycle. Magnetic limit switch. Anti-crush system by the combined action of the encoder and amperometric detection of obstacles reversing gate travel. Release by the aluminium handle by a key.

VERSATILE
Double bi-parting sliding gate function available by selecting the master/slave option on ELPRO 65.

TESTED AND CERTIFIED
In compliance with the European Norms EN 12445 and EN 12453 and CE marking

Data Sheet:-

Power supply (Vac – Hz)
230 – 50
Max. absorbed power (W)
400
Max. absorbed current (A)
2
Max. torque (N)
600
Motor revolutions (rpm)
1.350
Speed (m/min)
10
Gear ratio
1:31
Grade of protection IP
54
Oil type
706L
Working temperature (°C)
-20 ÷ +50
Motor thermal protection (°C)
160
Weight (kg)
11,3
Frequency of use
intensive

Dimensions:-
