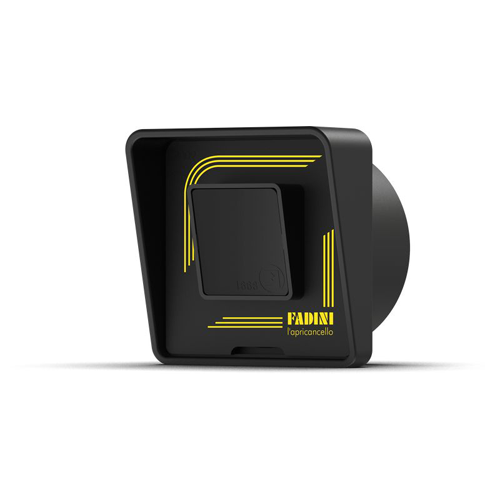

Fadini Difo 33 Photocell

PHOTOCELL FOR RECESS MOUNT
Safety device with infrared modulated light type D in compliance with EN 12453 norms, one receiver and one transmitter/projector

ROBUST
ABS body with a high level of resistance to atmospheric agents.

RELIABLE
12 m distance range. Relay output to be connected to any electronic control unit in the ELPRO range or any existing installation. 24 Vac/dc voltage supply.
DIFO 33 POTENZIATE: 30 m distance range.

Data Sheet:-

• Power supply (Vac/dc)
  24
• Modulated light frequency (Hz)
  1.100
• Projector absorption (mA)
  40
• Receiver absorption (mA)
  50
• Working temperature (°C)
  -10 ÷ +60
• Output contact (Vac – VA)
  1 A/125 – 60
• Distance range (m)
  12/30
• Grade of protection IP
  44
