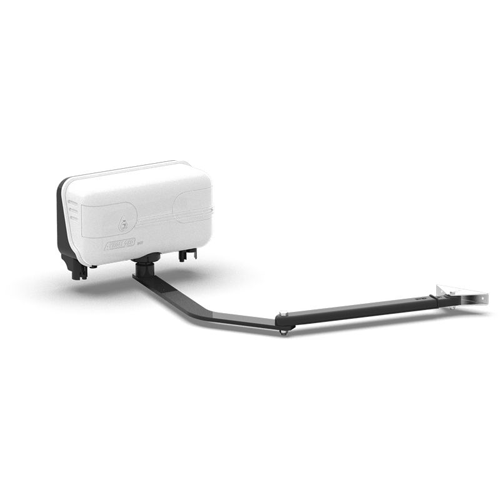

Fadini Aproli 280/700 Robusto

Aproli 280/700 robusto

For swinging gates

On-the-gate mount, oil-hydraulic operator with articulated arm

For residential and industrial use

230 Vac

3 m | 400 kg

DISCREET
For installation on gates where large pillars are involved: capable of a powerful though quiet action.
Easy to install.

OIL-HYDRAULIC
Anti-crush safety ensured by the by-pass valves incorporated in the operator. Available with bidirectional oil-hydraulic locking device (irreversible).

STRONG
Cataphoresis treated steel, shearing preventing articulated arm. Manual override accessed by key.

Data Sheet:-

• Power supply (Vac – Hz)
  230 – 50
• Absorbed power (W)
  250
• Absorbed current (A)
  1,2
• Power yield (kW / HP)
  0,18 / 0,25
• Torque (Nm)
  250 – 400
• Shaft rotation
  130°
• Opening time (s)
  23
• Working temperature (°C)
  -20 ÷ +80
• Grade of protection IP
  67
• Oil type
  708L
• Weight including arm (kg)
  19
• Frequency of use
  semi-intensive

Dimensions:-

Application:-
