Original price was: £465.60.£349.20Current price is: £349.20. inc VAT

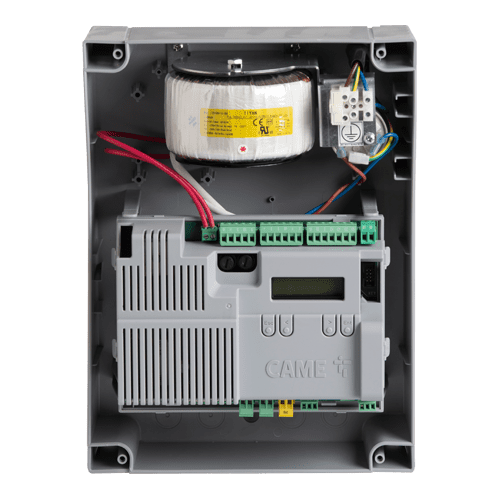

The CAME ZLB24-SA (801QA-0090) is a dedicated control panel designed exclusively for the Frog-X brushless underground gate operator. It provides the advanced electronic logic required to drive 24V brushless motors, offering industry-leading speed, silent operation, and Adaptive Torque Technology. Fully integrated with CAME’s CXN BUS for simplified, non-polarized accessory wiring, the ZLB24-SA is the essential component for ensuring maximum performance, safety, and smart-home connectivity in a Frog-X installation.
| Weight | 3 kg |
|---|---|
| Documentation | ZLB24SA Manual – https://came-cdn.thron.com/static/KBOKKE_FA02116-EN_HBD4LI.pdf?xseo=&response-content-disposition=inlinefilenameCAME-fa02116-en.pdf |
The CAME ZLB24-SA (Part No. 801QA-0090) is the dedicated, high-performance control board engineered exclusively for the Frog-X brushless underground swing gate operator. It is specifically designed to manage the sophisticated electronic commutation required by brushless 24V DC motors, delivering high-speed performance (up to 10 seconds for 90°) while maintaining whisper-quiet operation.
Brushless Motor Logic: Unlike standard boards, the ZLB24-SA utilizes advanced “SMART MOVEMENT” logic to provide precise control over the brushless motor’s torque and speed, ensuring safety and fluidity regardless of external factors like wind or gate weight.
Adaptive Technology: Features CAME’s Adaptive Speed & Torque Technology, which continuously monitors the gate’s performance to prevent slamming and ensure consistent operation in all weather conditions.
CXN BUS Integration: The board is fully compatible with CAME’s CXN BUS technology, allowing for a simplified, low-voltage, non-polarized wiring layout for all connected safety accessories (photocells, keypads, etc.).
Installer-Friendly Design: The housing features a unique “tilting” removable cover that makes wiring terminals significantly more accessible. Additionally, the interior layout provides dedicated space to house extra modules, such as GSM or Smart Management accessories.
| Feature | Specification |
| Compatible Motor | CAME Frog-X (Brushless 24V DC) |
| Power Supply | 230V AC (50/60 Hz) |
| Output Voltage | 24V DC |
| Connectivity | Integrated CXN BUS |
| Programming | Advanced graphic interface / Setup wizard |
| IP Rating | IP54 |
