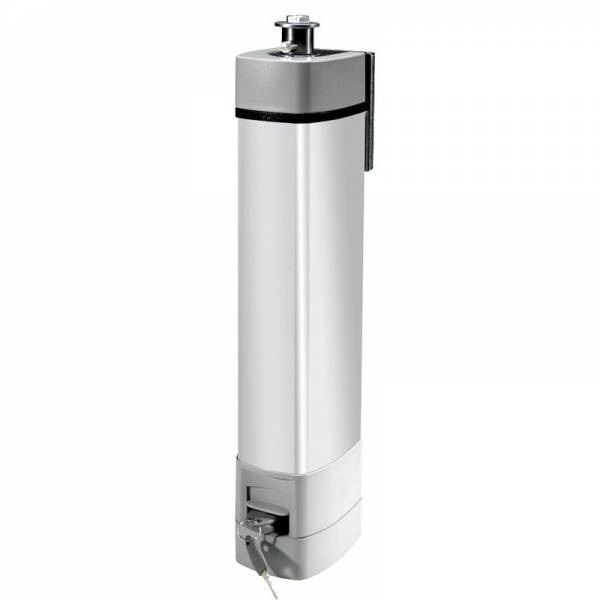

CAME STYLO-RME 24V Reversible Compact Swing Gate Motor

CAME STYLO-RME 24V Reversible Compact Swing Gate Motor

SKU: 001STYLO-RME

Original price was: £460.80.Current price is: £345.60. inc VAT

Reversible motor with encoder for swing gate up to 1.8m per gate

Built in Encoder for slow-down and force limitation
Motor can be installed on posts only 8cm wide or a fence or wall with straight arm option
Release system with keys
Reversible version also available

Additional information

Documentation	Stylo RME Installation Manual – https://came-cdn.thron.com/static/IM4WLF__FA01193-EN_3GSBJY.pdf?xseo=&response-content-disposition=inlinefilenameCAME_technical-manual_001STYLO-ME.pdf
Type of System	Swing Gate Automation
Power Supply For Motor	24v
Max Weight Per Leaf (Kg)	150 KG
Max Length Per Leaf (Metres)	1.8 Metres

Reversible motor with encoder for swing gate up to 1.8m per gate

Built in Encoder for slow-down and force limitation
Motor can be installed on posts only 8cm wide or a fence or wall with straight arm option
Release system with keys
Reversible version also available

Dimensions (mm)

Limits to use
MODEL	STYLO-ME
Max gate-leaf width (m/ft)	1.8/6	1.2/3.9	0.8/2.6
Max gate-leaf weight (Kg/lb)	100/220	125/275	150/330
Max gate-leaf opening (°)	120 (with 001STYLO-BS) – 135 (with 001STYLO-BD)

Technical features
Model	STYLO-ME
Protection rating IP	IP54
Power supply (V – 50/60 Hz)	230 AC
Motor power supply (V – 50/60 Hz)	24 DC
Current draw (A)	5 MAX
Power (W)	48
90° opening time (s)	ADJUSTABLE
Duty cycle (%)	INTENSIVE USE
Torque (Nm)	100
Operating temperature (°C/°F)	-20 · +55/-4 · +131
Motor thermo protection (°C/°F)	–

Documents

Stylo RME Installation Manual
