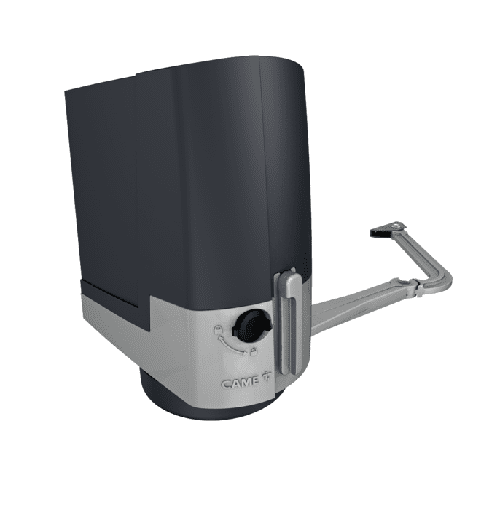

CAME FTL Motor (801MB-0050)

CAME FTL Motor is an ideal automation option for a residential setting to fit onto small and medium sized pillars

• Enables compliance with the current regulations regarding impact forces
• Automation with control by encoder
• User-friendly release lever for manually opening the gate.
• Can operate in emergency mode during power outages.
• Self-diagnosis of wired safety devices
• Electronic board, with separate terminal block and dip switch settings for selecting the functions. Storage for up to 25 different users.
• Integrated rolling code programming.
• Possibility of connecting wired key pads from the CAME range using the R800 accessory.
• One version, with encoder-based control, for gates with leaves measuring up to 2 meters.
• Smooth movement and opening time to 90° of 19-25 seconds.
• Safety is ensured by the encoder’s movement control function.
• Directly settable functions, such as closing times, speed and sensitivity.
• Self-diagnosis of wired safety devices
• It can handle up to 25 Rolling Code users.
• Plug-in connectors for the R800 control board and AF receiver.It works even during power outages by fitting emergency batteries in the specific housing.

• Max. length of leaf (m)2.0 / 1.7 / 1
• Max. weight of leaf (kg)200 / 225 / 250
