Original price was: £589.20.£441.90Current price is: £441.90. inc VAT
Underground brushless irreversible 24 V gearmotor with standard encoder, Adaptive Speed & Torque Technology, movement management, obstacle detection and
adjustable leaf-stop during closing, for swing gates with leaves up to 4.0m in length and 400 kg in weight.
| Documentation | Frog X Installation Manual – https://came-cdn.thron.com/static/HIE03I__FA01914-EN_HTGLCI.pdf?xseo=&response-content-disposition=inlinefilenameCAME-fa01914-en.pdf |
|---|---|
| Type of System | Swing Gate Automation |
| Power Supply For Motor | 24v |
| Max Weight Per Leaf (Kg) | 800 KG |
| Max Length Per Leaf (Metres) | 4 Metres |

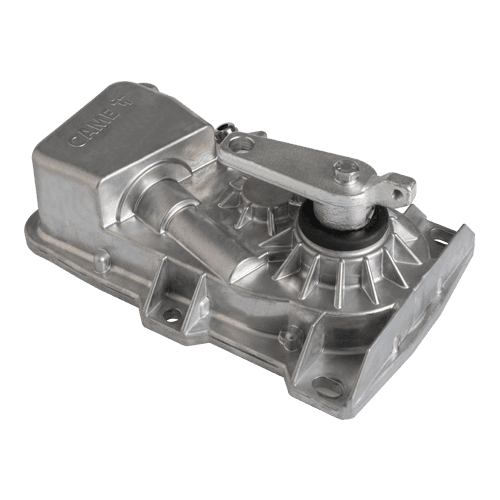

Frog-X 801MI-0020
Underground brushless irreversible 24 V gearmotor with standard encoder, Adaptive Speed & Torque Technology, movement management, obstacle detection and
adjustable leaf-stop during closing, for swing gates with leaves up to 4.0m in length and 400 kg in weight.
FROG-X is controlled by the relevant control panel ZLB24-SA.
FROG-X Video – https://came-cdn.thron.com/static/BXQHTA_FROG-X__EN_JFFPFD.mp4?xseo=
Dimensions (mm)
For leaves longer than 2.5 m, install an electric lock.
MODELS – FROG-X
Gate-leaf length (m) 4, 3.5, 3, 2.5, 2
Gate-leaf weight (Kg) 400, 500, 600, 700, 800
Technical data
MODELS – FROG-X
Motor power supply (V) 24 DC
Power (W) 190
Current draw (mA) 15
Operating temperature (°C) -20 · +55
Torque (Nm) 280
Opening time at 90° (s) 10-18
Cycles/hour CONTINUOUS OPERATION
Protection rating (IP) 67
Insulation class III
Storage temperature (°C)* -20 · +70
Average life (cycles)** 250.000
