CAME BPT Opale Video Intercom Receiver

SKU: opalemonitor

Price range: £465.60 through £470.40 inc VAT

Colour of Unit

Clear

Opale Video intercom receiver for X1 and XIP systems

Available in black or white with 3.5″ LCD display

Additional information

Colour of Unit	White, Black
Documentation	Opale Manual – https://came-cdn.thron.com/static/X8TN7P__FA01564-EN_7M2SVD.pdf?xseo=&response-content-disposition=inlinefilenameCAME-fa01564-en.pdf

Opale Video intercom receiver for X1 and XIP systems

Available in black or white with 3.5″ LCD display

Up to 10 programmable AUXs

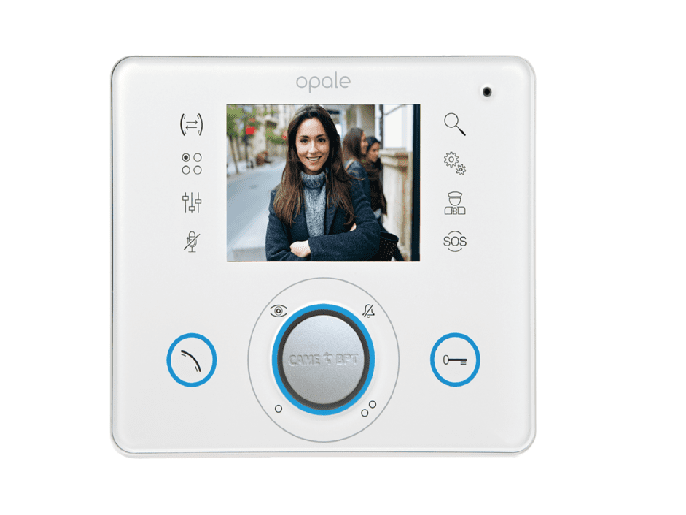

Wall monitor with 3.5″ LCD touch-screen display with graphical interface.
Left side there are the intercom function-access buttons, access to additional auxiliary controls, access to video adjustments and deactivating the incoming call audio
Right side there are the buttons for zooming, device setup, porter-message displaying and the “Panic” button for emergency calls to the porter.
Main keys are visible and backlit, allowing activation of communication and door opening, while the central dial is for managing 2 auxiliary commands, self-insertion of entry panel videos, and alarm exclusion (with LED signaling when excluded).
It is equipped with a Master/Slave function and a video relaying between extensions function for simultaneous calls.
Bus or local power supply (16 to 18 V DC) via selector switch.
Wall installation to be finished with the OPALEKP wall brace or recess-mounted installation to be finished with the OPALSI recess-mounted box
