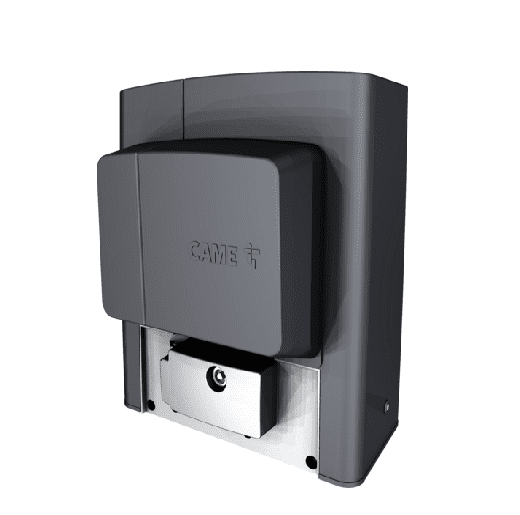

CAME BKS22AGS Motor

SKU: 801MS-0100

Original price was: £1,072.80.Current price is: £804.60. inc VAT

Ideal motor or operator for industrial sliding gates up to 2200kg and 20m in length

Additional information

Documentation	BKS22AGS Installation Manual – https://came-cdn.thron.com/static/T6J3IV_FA01295-EN_NSJ1WJ.pdf?xseo=&response-content-disposition=inlinefilenameCAME-fa01295-en.pdf

Ideal motor or operator for industrial sliding gates up to 2200kg and 20m in length

A complete, flexible and safe range to meet different needs, from industrial to heavy-duty operating conditions.
Module 4 or 6 pinions for constantly smooth, linear transmission of movement to the rack.
Can fit magnetic limit-switches.
Electronic board, with separate terminal blocks and display, to facilitate start-up and diagnosis phases. Storing for up to 250 different users.
Radio programming Rolling code and integrated Key Code (Twin).

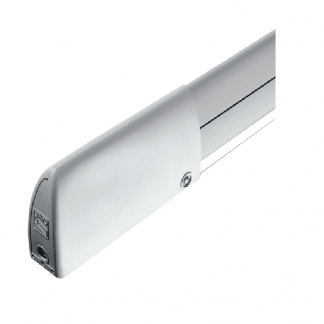

The safety inputs can be configured to directly control the 8k2 resistive sensitive-safety edges.
Management of the Rio series wireless security accessories using the dedicated plug-in accessory.
Self-diagnosing safety devices whether wireless or not.
Devices developed for connection to the cloud, via CAME Connect.
Used to directly manage CAME key pads using the R800 accessory or connect CAME transponder selectors using the R700 accessory.
Compatible with CAME KEY.
The movement speed is 10.5 m/minute.
The operator can be managed from a remote location via app through the CAME GATEWAY.
Available with module 4 and 6 pinion to ensure sturdiness and better quality of movement.
Built-in ZBKN control board with display and memory roll, for easier programming and start-up.
Plug-in connectors for RIOCN8WS, R700, R800, RSE and AF receiver cards.
It handles up to 25 Rolling Code users.

MODELS	801MS-0080	801MS-0090	801MS-0100
Protection rating (IP)	44	44	44
Power supply (V – 50/60 Hz)	230 AC	230 AC	230 AC
Power supply to motor (V)	230 AC 50/60 Hz	230 AC 50/60 Hz	230 AC 50/60 Hz
Absorption (A)	3,3	4,2	5,1
Power (W)	540	660	580
Manouvering speed (m/min)	10,5	10,5	10,5
Duty/cycle (%)	50	50	50
Thrust (N)	850	1150	1500
Operating temperature (Â°C)	-20 · +55	-20 · +55	-20 · +55
Motorâ€™s heat protection (Â°C)	150	150	150
