CAME ATI 3m 24V Double Swing Gate Kit with Dual Vandal-Resistant Keypads & CAME Connect

CAME ATI 3m 24V Double Swing Gate Kit with Dual Vandal-Resistant Keypads & CAME Connect
SKU: SHARPATI24VDACCESS

Original price was: £2,190.00.Current price is: £1,540.92. inc VAT

Heavy-duty surface-mounted automation for 3.0m gates with dual secure keypad access.

The CAME ATI 24V Double Gate Kit (3.0m) is designed for medium-to-large residential and commercial swing gates up to 3.0 metres per leaf. Built with robust linear electromechanical rams in die-cast aluminum, this complete package includes two anti-vandal keypads for secure PIN code access on both entry and exit, paired with CAME Connect for remote smartphone app control and monitoring.

  • Gate Leaf Compatibility: Supports up to 3.0m leaf length / 400kg–800kg leaf weight.

  • Dual Keypad Control: Dedicated vandal-resistant keypads for both entry and exit points.

  • Duty Cycle: Intensive 24V operation designed for continuous, high-frequency use.

  • Smart App Control: Full remote management and status monitoring via CAME Connect.

  • Rugged Build: Weatherproof IP44 die-cast aluminum casing.

Additional information

Max Length Per Leaf (Metres)

3.0m
Max Weight Per Leaf (Kg)

800 KG
Power Supply For Motor

24v
Type of System

Swing Gate Automation

Heavy-Duty 3.0m Above-Ground Automation Meets Dual PIN-Code Access

The CAME ATI 24V Double Swing Gate Automation Kit (3.0m Version) is one of the most reliable surface-mounted linear ram solutions available for gates up to 3.0 metres per leaf. Engineered with die-cast aluminium casing and precision worm-screw drive systems, ATI handles high daily usage on residential, commercial, and multi-user gates with effortless reliability.

Equipped with dual vandal-resistant keypads—allowing PIN-controlled access for both arriving and departing traffic—and integrated CAME Connect, this all-in-one bundle delivers maximum perimeter security, smart app management, and controlled entry and exit.

Key Features & Benefits

  • Engineered for 3.0m Leaves: Precision-tuned linear rams built to automate double swing leaves up to 3.0 metres wide each.
  • Dual Vandal-Resistant Keypads: Heavy-duty, weather-sealed keypads for both entry and exit posts, ensuring secure PIN access without requiring transmitters or fobs.
  • Continuous 24V Performance: 24V DC motors engineered for intensive duty cycles with built-in obstruction sensing and soft-start/soft-stop operation.
  • CAME Connect Integration: Monitor, control, and configure your gate system remotely via smartphone app or web platform from anywhere in the world.
  • Rugged Build Quality: IP44 weather protection with heavy-duty aluminium construction resistant to atmospheric corrosion.
  • Integrated Travel Stops: Built-in mechanical limit stops simplify installation and ensure precise open/close alignment without ground stops.

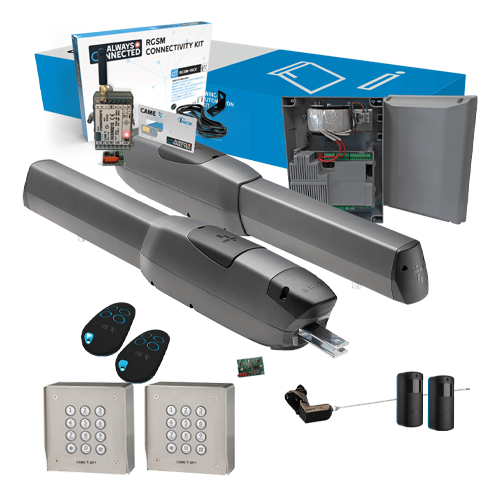

What’s Included in the Bundle?

  • 2x CAME ATI 24V Linear Ram Motors (A3024N – 3.0m Leaf Capacity)
  • 1x CAME ZLX24 / ZL Advanced 24V Control Panel
  • 2x Vandal-Resistant Digital Keypads (Entry & Exit)
  • 1x CAME Connect RGSM Gateway & Connectivity Module
  • 1x Pair of Safety Photocells
  • 2x CAME Rolling Code Transmitters
  • 1x Antenna & Radio Receiver Card
  • Mounting Brackets & Emergency Release Keys

Technical Specifications

Property Specification
Motor Voltage 24V DC
Installation Type Surface Mounted / Above Ground Linear Ram
Max Leaf Length 3.0 metres per leaf
Max Leaf Weight 400 kg (at 3.0m) / 800 kg (at 2.0m)
Duty Cycle Intensive / Continuous Duty
Opening Time (90°) 13 Seconds
Protection Rating IP44 Weatherproof Casing
Access Control Dual Vandal-Resistant Keypads (PIN Access)
Connectivity CAME Connect / CXN BUS
