CAME ATI 3m 24V Double Swing Gate Automation Kit with 4G GSM Intercom, Keypad, Wireless Vehicle Detector & CAME Connect

CAME ATI 3m 24V Double Swing Gate Automation Kit with 4G GSM Intercom, Keypad, Wireless Vehicle Detector & CAME Connect
SKU: SHARPATI24VDCON

Original price was: £3,361.20.Current price is: £2,255.70. inc VAT

Heavy-duty surface-mounted automation for 3.0m double gates with smart 4G access.

The CAME ATI 24V Double Gate Kit (3.0m) is designed for medium-to-large residential and commercial swing gates up to 3.0 metres per leaf. Built with robust linear electromechanical rams in die-cast aluminum, this complete bundle includes a vandal-resistant 4G GSM keypad intercom, a wireless vehicle exit detector, and CAME Connect smart cloud technology for remote smartphone control and system management.

  • Gate Leaf Compatibility: Supports up to 3.0m leaf length / 400kg–800kg leaf weight.

  • Duty Cycle: Intensive 24V operation designed for high-frequency use.

  • 4G Access Control: Anti-vandal GSM audio intercom with backlit PIN keypad.

  • Hands-Free Exit: Wireless vehicle detector triggers automatic opening without driveway trenching.

  • Smart App Control: Integrated CAME Connect gateway for global remote monitoring.

Additional information

Max Length Per Leaf (Metres)

3.0m
Max Weight Per Leaf (Kg)

800 KG
Power Supply For Motor

24v
Type of System

Swing Gate Automation

Heavy-Duty 3.0m Above-Ground Automation Meets Smart 4G Control

The CAME ATI 24V Double Swing Gate Automation Kit (3.0m Version) is one of the most reliable surface-mounted linear ram solutions available for gates up to 3.0 metres per leaf. Engineered with die-cast aluminium casing and precision worm-screw drive systems, ATI handles high daily usage on residential, commercial, and multi-user gates with effortless reliability.

This premium bundle combines CAME’s 24V electromechanical technology with an anti-vandal 4G GSM intercom keypad, a wireless vehicle exit detector, and CAME Connect gateway technology—giving you complete access management and smart operation from anywhere in the world.

Key Features & Benefits

  • Engineered for 3.0m Leaves: Precision-tuned linear rams built to automate double swing leaves up to 3.0 metres wide each.
  • Continuous 24V Performance: 24V DC motors engineered for intensive duty cycles with built-in obstruction sensing and soft-start/soft-stop operation.
  • Vandal-Resistant 4G GSM Intercom: Receives calls directly on landlines or mobile devices when visitors push the call button, featuring an integrated keypad for PIN code access.
  • Wireless Vehicle Exit Loop: Automatically senses departing vehicles to trigger gate opening without ground cutting or cabling.
  • CAME Connect Ready: Cloud connectivity allows installers and users to monitor gate status, grant access, and adjust settings via smartphone or browser.
  • Integrated Travel Stops: Built-in mechanical limit stops simplify installation and ensure precise open/close alignment without ground stops.

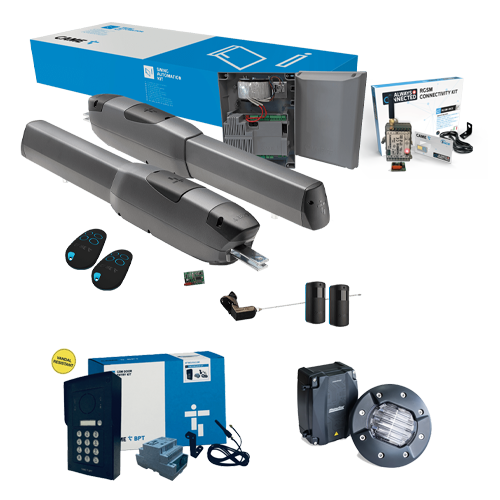

What’s Included in the Bundle?

  • 2x CAME ATI 24V Linear Ram Motors (A3024N – 3.0m Leaf Capacity)
  • 1x CAME ZLX24 / ZL Advanced 24V Control Panel
  • 1x Vandal-Resistant 4G GSM Intercom with Integrated Keypad
  • 1x Wireless Vehicle Loop/Detector System
  • 1x CAME Connect RGSM Gateway & Connectivity Module
  • 1x Pair of Safety Photocells
  • 2x CAME Rolling Code Transmitters
  • 1x Antenna & Radio Receiver Card
  • Mounting Brackets & Emergency Release Keys

Technical Specifications

Property Specification
Motor Voltage 24V DC
Installation Type Surface Mounted / Above Ground Linear Ram
Max Leaf Length 3.0 metres per leaf
Max Leaf Weight 400 kg (at 3.0m) / 800 kg (at 2.0m)
Duty Cycle Intensive / Continuous Duty
Opening Time (90°) 13 Seconds
Protection Rating IP44 Weatherproof Casing
Connectivity 4G GSM / CAME Connect / CXN BUS
