AES Global PRIME EDGE IBK | 4G GSM Imperial Wireless Intercom with Keypad & Prox

AES Global PRIME-EDGE-IBK-EU | 4G GSM Imperial Wireless Intercom with Keypad & Prox

The AES PRIME-EDGE-IBK-EU is the ultimate next-generation 4G GSM audio intercom system, stepping up as the sleek, premium successor to the popular Cellcom Prime 7 series. Engineered specifically for single-station residential or commercial gated entrances, this Imperial model features a hooded surface-mounted design, combining an integrated digital keypad and a 125kHz proximity reader with mobile network technology to connect your gate directly to your phone.

When a visitor presses the call button, the system automatically dials up to 4 programmed mobile or landline numbers in sequence, ensuring you never miss a visitor, delivery, or client—no matter where you are in the world.

Featuring a striking, all-black glossy facia panel accented by a rugged textured protective hood, the PRIME-EDGE-IBK delivers supreme weather protection and elite modern style without requiring complex, expensive underground data cabling.

Key Features & Benefits

• 4G LTE Connectivity (EU Region): Connects via cellular networks to provide infinite range communication, completely avoiding the need for extensive data wire installation.

• Imperial Hooded Aesthetic: Designed with a protective all-black hooded enclosure that shields the interface from heavy rain and glare, making it ideal for unprotected outdoor posts or walls.

• Built-in Keypad & Prox Reader: Features a heavy-duty metal keypad and a 125kHz proximity reader supporting 250 permanent codes/cards, 250 time-restricted codes, and 50 temporary codes for ultimate entry flexibility.

• Intelligent Sequential Dialling: Program up to 4 rollover phone numbers. If the first number doesn’t answer, the system immediately dials the next in line.

• Customisable LED Night Vision: The keypad and call button feature intelligent energy-saving illumination that automatically lights up at night. Customise the backlight colour to a crisp Blue or White to suit your property’s style.

• Dual Gate/Door Relay Control: Equipped with 2 separate relays (N/C and N/O, 2A max) allowing you to trigger, latch, or unlatch gates, barriers, or doors via simple SMS commands, the mobile app, or keypad pin entry.

• Enhanced Access Security: Advanced safety features including an automatic Keypad Lockout (enabled by default to prevent brute-force entry attempts) and optional Two-Factor Authentication (2FA) using both a passcode and a prox card.

• DDA Compliant Design: Built to meet the standards of the Disability Discrimination Act, ensuring the intercom interface is accessible and easy to operate for all users.

• Advanced “Do Not Disturb” (DND): Set weekly DND schedules or activate the dedicated Holiday DND feature to temporarily silence visitor calls during specific dates or after-hours.

Installer & User App Cloud Managed

Fully compatible with the AES PRO App for installers (allowing cloud storage of sites, multi-user sharing, and remote diagnostics like modem reboots and dial tests) and the AES Home App for end-users to manage entry codes, set 50 weekly automatic gate timing schedules, and view comprehensive event logs.

What’s in the Box?

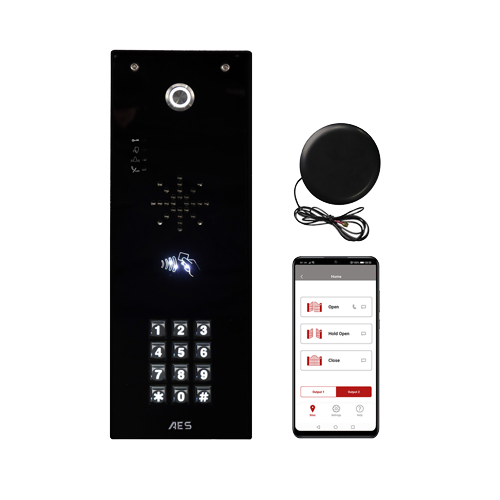

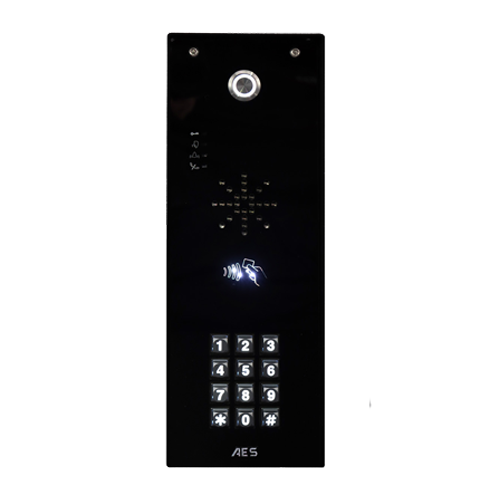

• (1) AES PRIME-EDGE-IBK-EU Imperial Speech Panel with Keypad & Prox Reader

• (1) High-Gain 4G Antenna

• (1) 24V DC 2A Power Supply Adaptor

• (1) SIM Card Options Kit

• (1) Digital Quick Start Guide

Technical Specifications

• Modem Type: 4G EU Region

• Panel Style: Imperial (All black with protective hood)

• Access Inputs: Backlit Metal Keypad & Built-in 125kHz Proximity Reader

• Relays: 2 (Max load: 2 Amps, 24V AC max)

• Power Supply: 24V DC (Included)

• Caller ID Authorized Users: Up to 250 numbers (plus 250 time-restricted numbers)

• Automatic Trigger Events: Up to 50 weekly schedules

• Hardware Connection: USB-C

• Firmware Updates: Supported via FOTA (Firmware Over The Air) SMS
